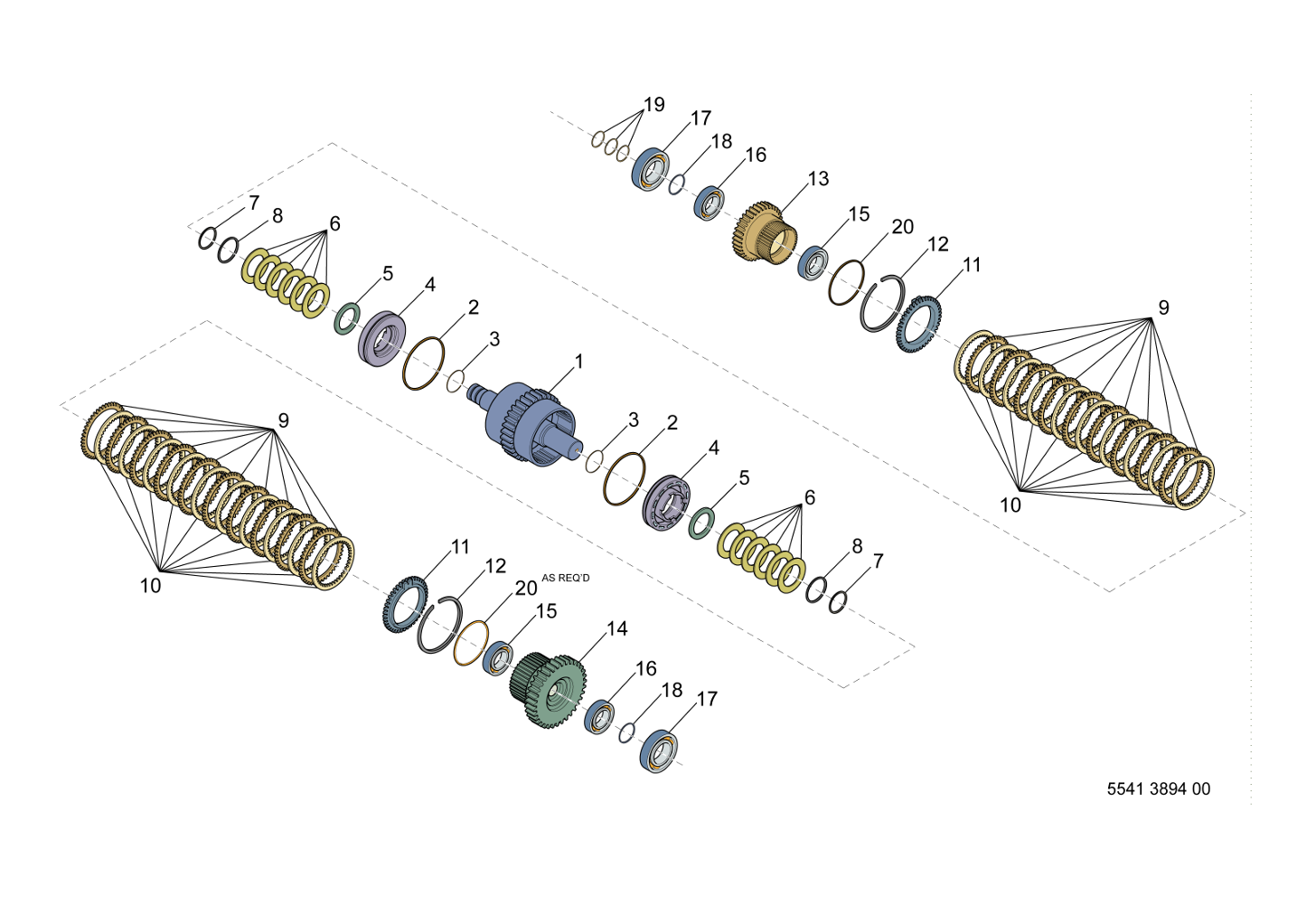

項目零件號名稱數量備注再制造件號L COMPLETE _ASSEMBLY 5541389400 SHAFT 1 SHAFT - 2ND STAGE 1 5541401400 SHAFT 1 2 5541403400 PISTON SEAL 2 PISTON SEAL 3 5541435200 O-RING 2 4 5580008435 PISTON 2 5 5541397400 WASHER 2 6 5541397000 SPRING 12 7 5541399900 RING 2 8 5541397500 RETAINER 2 SNAP RING 9 5533386700 DISK 20 10 6060009348 PLATE 20.00 11 5542018400 PLATE 2 12 5580005236 RING 2 13 5541401600 GEAR 1 14 5541402100 GEAR 1 15 5541402800 BEARING 2 16 6060005719 BEARING 2 17 5580005235 BEARING 2 18 5541399800 RING 2 19 5541869500 SEAL 3 20 5541398500 O-RING 2

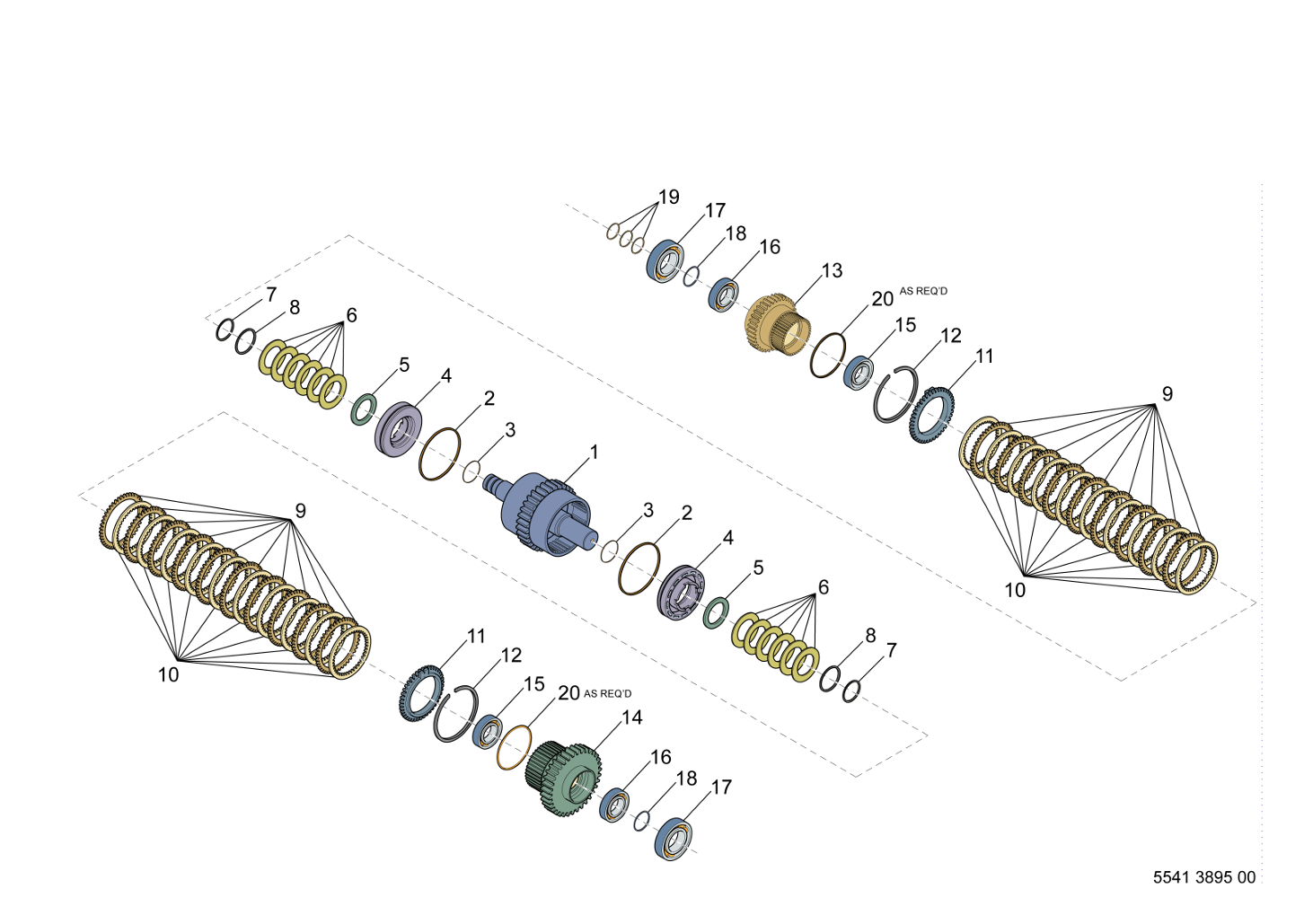

項目零件號名稱數量備注再制造件號L COMPLETE _ASSEMBLY 5541389500 SHAFT 1 SHAFT - 3RD STAGE 1 5541401400 SHAFT 1 2 5541403400 PISTON SEAL 2 PISTON SEAL 3 5541435200 O-RING 2 4 5580008435 PISTON 2 5 5541397400 WASHER 2 6 5541397000 SPRING 12 7 5541399900 RING 2 8 5541397400 WASHER 2 9 5533386700 DISK 20 10 6060009348 PLATE 20.00 11 5542018400 PLATE 2 12 5580005236 RING 2 13 5541401700 GEAR 1 14 5541402200 GEAR 1 15 5541402800 BEARING 2 16 6060005719 BEARING 2 17 5580005235 BEARING 2 18 5541399800 RING 2 19 5541869500 SEAL 3 20 5541398500 O-RING 2
